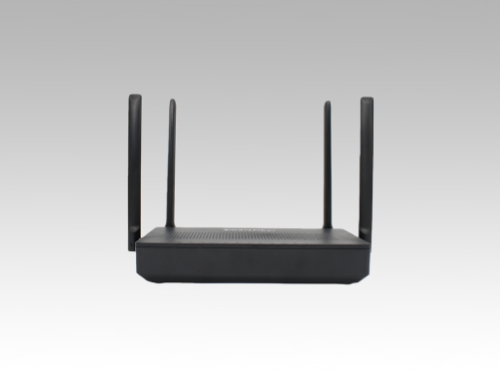

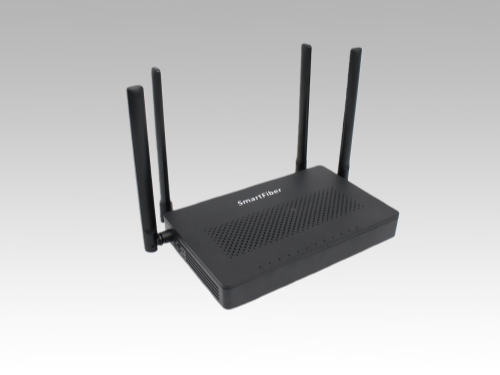

4GE+1POTS+AC1200 WIFI (XP8421C)
4GE+1POTS+AC1200 WIFI (XP8421C)
XP8421C is a 4ethernet port and 1 VoIP port broadband home gateway device for FTTH solution. EPON/GPON technology has been adopted to provide UWB access for Family/Enterprise’s User, Strong data processing capability, provides quality experience for the Internet , HD video and VoIP services.
-
Hardware
Interfaces
1 SC / UPC connector G / EPON
4* 10 / 100 / 1000M Ethernet ports(RJ45)
1 telephone port
2 USB2.0 ports
Buttons
Power On/Off
Reset
Wi-Fi On/Off
LEDs
PWR,PON,LOS,NET,LAN1,LAN2,LAN3,LAN4,TEL,2.4G,2.5G
Antenna
4 external antennas (5dB)
VoIP
SIP (RFC3261)
Codec: G.711 (μ-law and A-law), G.729, G.722
RTP/RTCP(RFC 1890)
Echo cancellation
VAD/CNG
DTMF
T.30/T.38 FAX
Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference
Wi-Fi
Frequency: 2.4 GHz, 5GHz
IEEE 802.11a/n/ac Wi-Fi @ 5GHz
IEEE 802.11b/g/n Wi-Fi @ 2.4GHz
WPA/WPA2 Security
Up to four broadcast/hidden SSIDs for each band
Up to 1200Mbps
USB
USB2.0 port (2)
Mobile phone power supply
USB backup / restore configuration
3G / LTE adapter
PON port
Uplink and downlink 1.25/2.544 Gbps transmission rate
Network coverage radius: 20km
Optical interface type: SC / UPC
Receiving sensitivity: ≤ - 27dBm
Transmission optical power: 0 ~ 4dbm
Security: ONU authentication mechanism
VLAN
Support 64 VLANs (1 ~ 4094)
port VLAN
IEEE 802.1Q VLAN
Support CTC 2.1 / 3.0 to define VLAN
-
Software
Networking
IPv4/IPv6 Dual Stack
SNTP client
NAT/ALG
Static routing/Dynamic routing
PPPoE client/passthrough
DNS client/relay
DHCP client/server
IGMP and MLD snooping/proxy
QoS
Flexible packet classification
Up to eight queues
SP/WRR/SP+WRR
Ingress rate limit
Egress shaping
WMM(Wi-Fi Multi Media)
Security
Based on uni port, VLAN ID, 802.1p, uni + 802.1p or VLAN + 802.1p
Denial of service attack defense
Multiple VPN (IPSec, PPTP) pass through
MAC address filtering
Broadcast / unicast / multicast attack defense
Broadcast packet rate limit
Dual impression for automatic firmware rollback
Support port MAC address limit
Support port protection
Support data encryption
Support status detection and fault reporting
Support power lightning protection
Management
TR-069/OMCI remote management
WEB GUI management
Local built-in diagnostic function
Logs and statistics
Remote upgrade by HTTP
Multicast
Support IGMP snooping
Support CTC to define dynamic multicast function Support MLD snooping
Follow standards
IEEE802.3ah
Communication industry standard of the people's Republic of China (YD / T 1475-2006)
IEEE 802.1D, Spanning Tree
IEEE 802.1Q, VLAN
IEEE 802.1w, RSTP
